Tupavco 1U 19" Rack Mount Fan - 4 Fans Server Cooling System - Heat Monitor Display

UPC: 638362929907
Model Number: TP1701

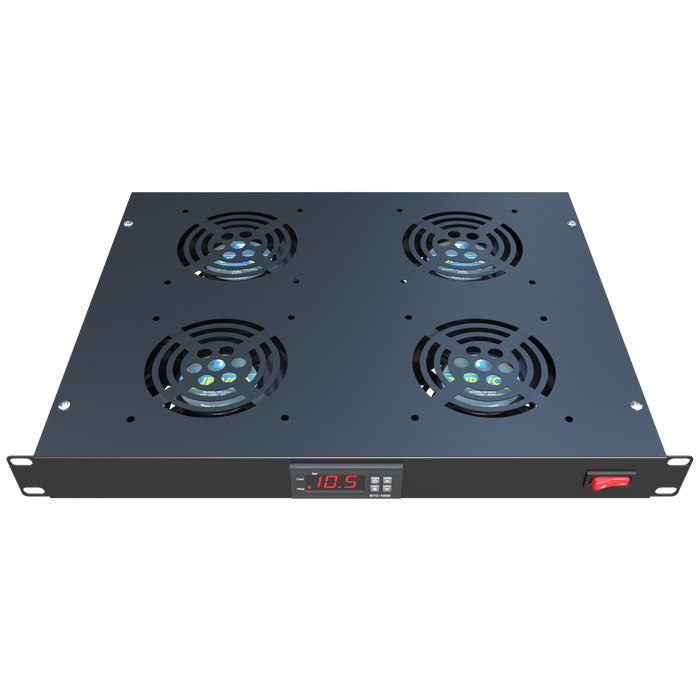

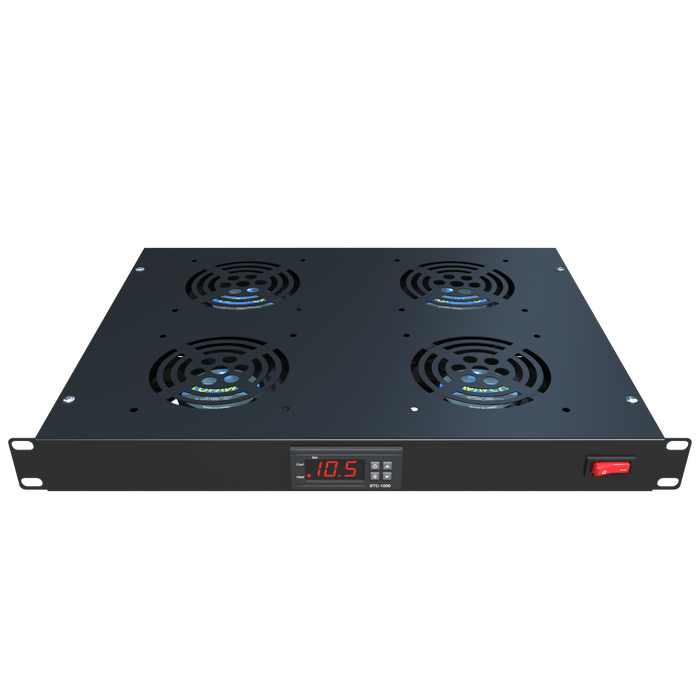

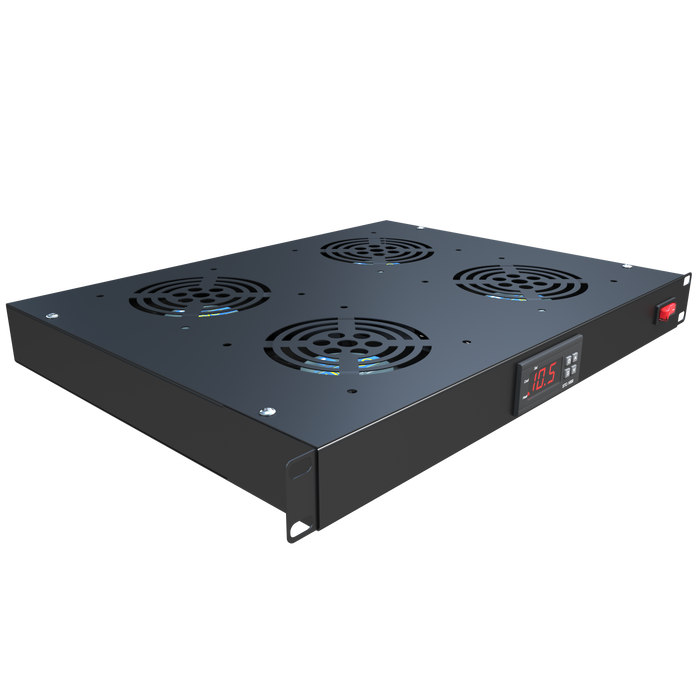

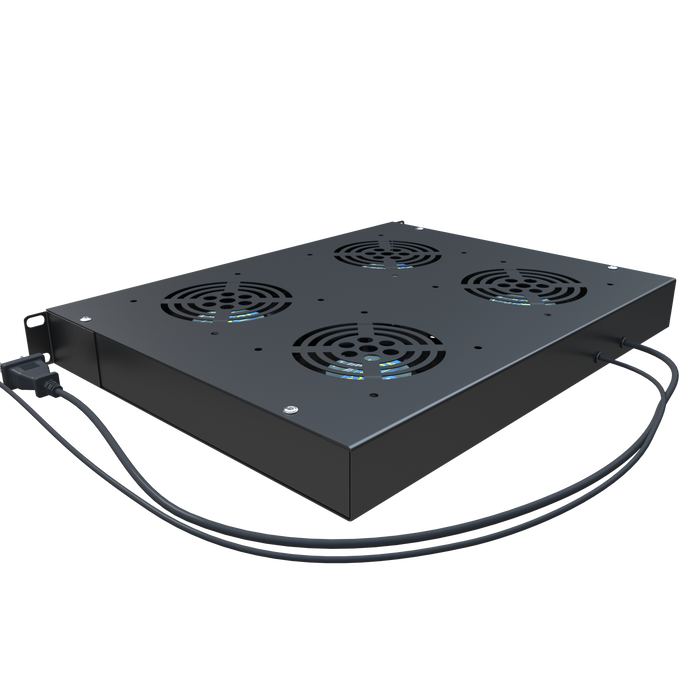

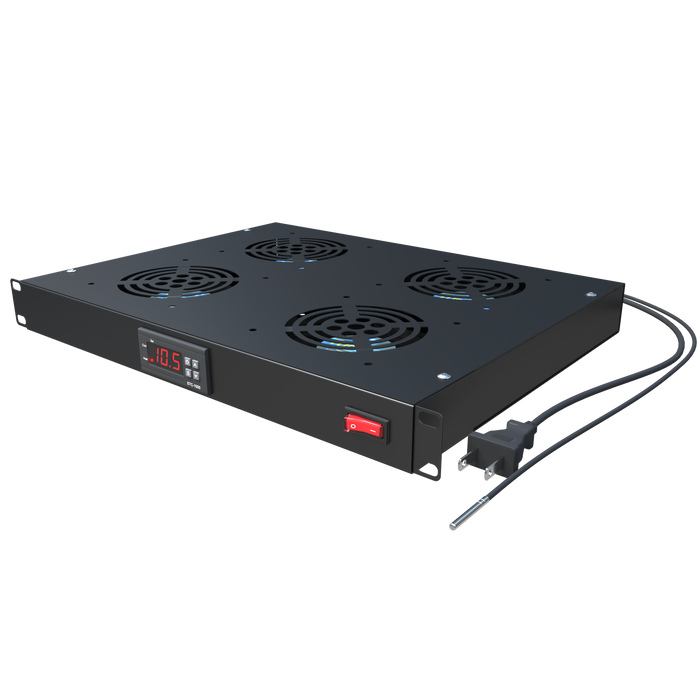

Tupavco TP1701 4 Fan Cabinet Cooling Unit with Digital Display and Adjustable Temperature ON/OFF Control

This unit finds use in a wide variety of situations, from home theater setups to server and computer network cabinets, to music and DJ equipment racks, and audio-video (AV) subracks. The four high volume cabinet fans pump out 300 CFM of air through a top exhaust, providing a healthy flow stream to keep your setup cool . The server cooler system is controlled by an easy to use, user-friendly programmable controller set through an LCD display screen, which is used to monitor the temperature of the system through a probe attached to the fan cabinet, telling the fan when to turn on. Automatic adjustments are then made accordingly to keep the airflow of the rackmount optimal. This keeps your valuable equipment operating at the temperature range of peak performance and is a safety check against overheating.

To set the temperature you want your system to be at, press the “S” button on the display, and hold for 3 seconds. At this point, the display should show “F1”. This is the “Set Temperature” parameter. Then, adjust the displayed temperature by simultaneously pressing “S” and the up/down arrows by the display. Once you have arrived at your desired temperature, press the “OFF” key to save the set system temperature, the display will then show the current system temperature.

• Adjustable temperature control helps ensure optimal performance for rackmount such as network, server, music, and AV cabinets
• Noise controlled fans makes the cooling system useful for a quiet office or business space
• Compact design mounts to any 19" inch cabinet and takes up only 1 unit of space
• Simple and easy to use LCD display allows user to control temperature
• Air pumped through to the top exhaust system of the fan

Open Frame Racks or Enclosed Cabinets Mount

This versatile rack cooling fan system can mount to any 19” standard cabinet, and is useful in a wide variety of different applications. The rack fans are best positioned near the top of your rack or near the device which tends to overheat to pump the hot air away from the equipment.

The 4 powerful and quiet fans are encased in a sturdy aluminum enclosure and are finished in a sleek black design. The quiet build of the cooler coupled with the the high-performance fans that pump out 300 cubic feet per minute make the fans a steal on any budget.

Manual (PDF)
