MIMO Ceiling Antenna 2.4GHz/5.8GHz 6dBi 3x RP-SMA Dual Band

by Tupavco
Sold out
Original price $55.99
Current price $26.99

UPC: 741360888159

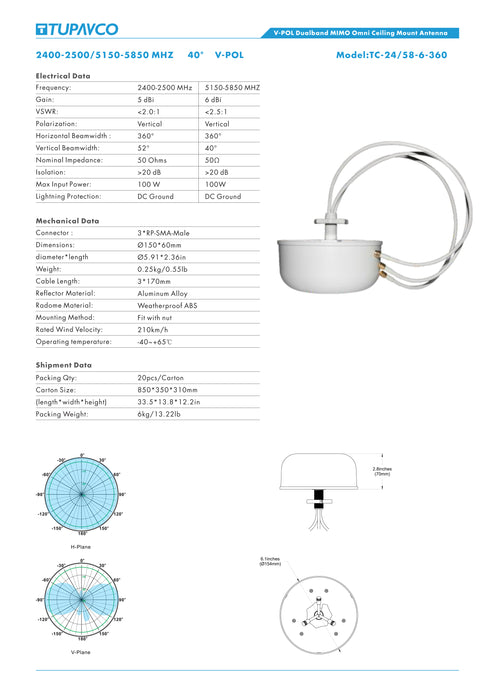

2400-2500/5150-5850 MHZ 40° V-POL, 2.4/5.8GHz MIMO antenna, 6dBi, 3 x RP-SMA-male connectors with cable 1 feet

Electrical Data:

Frequency: 2400-2500 MHz; 5150-5850 MHZ
Gain: 5 dBi; 6 dBi
VSWR: <2.0:1; <2.5:1
Polarization: Vertical; Vertical
Horizontal Beamwidth: 360°; 360°
Vertical Beamwidth: 52°; 40°
Nominal Impedance: 50 Ohms; 50 Ohms
Isolation:: >20 dB; >20 dB
Max Input Power: 100 W; 100 W
Lightning Protection: DC Ground; DC Ground

Mechanical Data:

Connector: 3*RP-SMA-Male
Dimensions (diameter*length): Ø5.91*2.36in
Weight: 0.55 lb
Cable Length: 3*6.69in
Reflector Material: Aluminum Alloy
Radome Material: Weatherproof ABS
Mounting Method: Fit with nut
Rated Wind Velocity: 210km/h
Operating temperature: -40~+65C
